IR Class Certification Telescopic Foldable Barge Mounted Crane 3T 12M

Name: IR Class Certification Telescopic Foldable Barge Mounted Crane 3T 12M
Brand: OUCO
Price: 1 USD

Wholesale IR Class Certification Telescopic Foldable Barge Mounted Crane 3T 12M from china suppliers

Brand Name : OUCO

Model Number : OUCO-3T12M-KTB

Certification : IRClass Certification

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per year

Delivery Time : 2 months

Packaging Details : Shipping Container/Wood Crate/nude

Product : IRClass Certification 3T12M Foldable Barge Mounted Crane

Quality : Heat and freeze-proof, explosion-proof and radiation-proof, IP56

Color : As your requirement

Function : 360° Slewing/Lifting/Foldable/Knuckle/Telescopic

Test video : Provided

Custom : Accetp

Model : Folding and Telescopic Boom Crane

Application : Offshore Pedestal/Barge/Support Vessel

Contact Now

IRClass Certification 3T12M Foldable Barge Mounted Crane

The 3T12M Foldable Barge Mounted Crane, meticulously crafted by OUCO specifically for Indian clientele, stands as a testament to our dedication to tailored solutions. These cranes have received the prestigious IRClass certification, signifying their compliance with rigorous quality standards. Notably, this marks OUCO's inaugural crane product certified by the Indian Classification Society.

Featuring a compact design, the two 3T12M cranes can be effortlessly installed on service vessels, rapid supply vessels, and barges' decks. Their exceptional versatility shines with a working radius spanning from 2.5 meters to 12 meters, granting adaptability for diverse lifting scenarios.

With a swift lifting speed of approximately 12m/min, these cranes ensure efficient and prompt operations. Their 360-degree rotation capability facilitates seamless maneuvering, complemented by a slew speed of 0.6 revolutions per minute. A wide range of additional options and extra features can also be configured for you.

Technical parameters

TECHNICAL PARAMETERS
1.	SWL	SEE LOAD CHART
2.	MAX. WORKING RADIUS	12M
3.	MIN. WORKING RADIUS	2.5M
4. 5.	HOISTING SPEED
	WINCH	0~12m/min
	HOOK TRAVEL	30m
6.	SLEWING SPEED	0.6r/min
7.	SLEWING ANGLE	360°
8.	FIRST LUFFING TIME	~60S
9.	SECOND LUFFING TIME	~60S
10.	BOOMS EXTENSION TIME	~90S
11.	WORKING CONDITION
	TRIM	≤2°
	HEEL	≤5°
12.	MAX.WIND SPEED
	Working Condition	20m/s
	Parking Condition	55m/s
	ELEC-MOTOR POWER	Y180L-4-H
	POWER	22kW
	SPEED	1470r/min
	POWER RESOURCE	AC415V/30HZ/3P
13.	PROTECT CLASS	IP56
14.	INSUKATE CLASS	F
15.	WORKING TYPE	S1
16.	Ambient Temperature	-10° ~+40°
17.	Model	Marine crane

GA Drawing

IR Class Certification Telescopic Foldable Barge Mounted Crane 3T 12M

Load Chart

IR Class Certification Telescopic Foldable Barge Mounted Crane 3T 12M

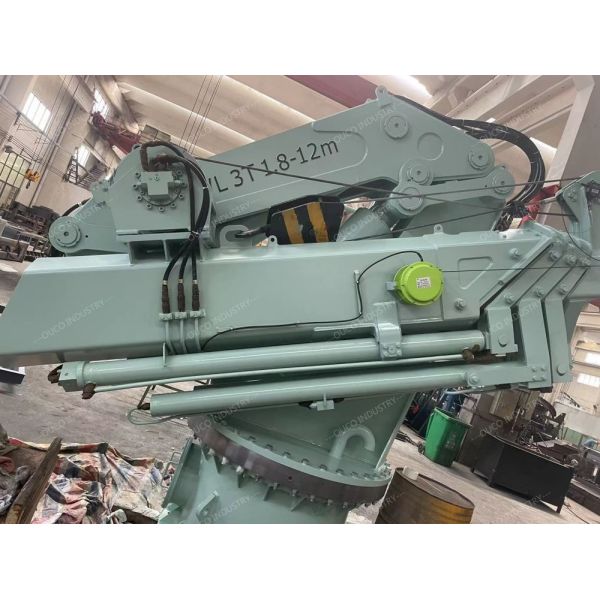

Product Picture

IR Class Certification Telescopic Foldable Barge Mounted Crane 3T 12M

FAQ
1. Q: Can this type work in hazardous environments?
A: Sure! We can customize it for you, acid-proof or explosion-proof, no problem with that.
2. Q: Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q: How can we install the crane?
A: Our senior engineer can be on your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q: Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
