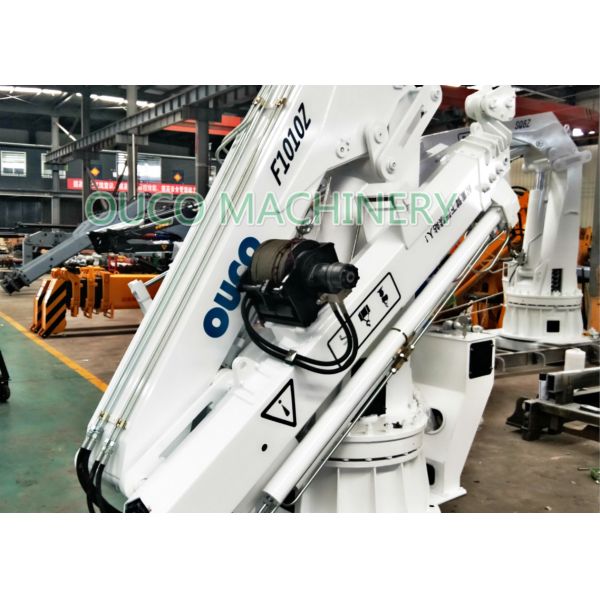

1.4t10m Mini Knuck Telescopic Boom Hydraulic Space Save Crane
Product description
The crane is a hydraulic slewing and luffing crane ,for lifting a variety of marine debris and marine life,loading and unloading cargo or other special purposes.
Marine Hydraulic Slewing crane is composed by the cylinder , the fuel tank,crane hoisting mechanism and jib luffing mechanism .And lifting ,rotating,jib luffing are driven by hydraulic system.
advantage of OUCO foldable mini crane for sale
* Flexible and reliable action
* Easy to operate
* higher quality hydraulic system
* Suitable for operations at sea .
Technical Specification
| SWL | 1.4T10M |
| Max.working radius | 16M |
| Min.working radius | 2M |
| Hoisting height | 25M |
| Hoisting speed | 15m/min |
| Slewing speed | 1.2r/min |
| Slewing angle | 360° |
| HPU | 30 KW |
| Luffing angle | 0- 75 ° |
| Design temperature | -10~+45 ° |
| Working condition | heel≤5° trim≤2° |
| Dead Weight | 4300kG |
| Oil tank capacity | 160L |
| Brand | OUCO |
| Spare parts | 1 set ( If needed, more spare parts are available to be provided according to customers' requirements ) |
| Warranty | 1 year( If needed, warranty time is available to be extended according to customers' requirements ) |
Drawing
Detailed Images
Packing
Customer Visit And Exhibition
Certificate
FAQ
1.Q: What's the working radius of your crane?
A: From 1m to 100m, we can also design and manufacture cranes according to your requirements.
2. Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
3. Q: Is this crane explosion-proof?
A: Sure, we can equip any extra function based on your requirement.
4. Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
5. Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.
For more details, please feel free to contact us.
