ABS Approved Jib Ship Marine Hydraulic Knuckle Boom Deck Crane
General information
OUCO knuckle boom marine crane appears similar to a standard crane, except that the boom articulates at the 'knuckle'
near the middle, letting it fold back like a finger. This provides a compact size for storage and manoeuvring.
The crane is controlled from an open platform above the slewing ring. One motions each (hoisting ,slewing or luffing) can be done with full load.Each hydraulic circuit is provided with equipment for limiting hydraulic pressure to preset values corresponding with crane capacity. The crane is provided with an automatic hook stop in top position.Over load safety device.Luffing up- down. The luffing cylinder is designed for safe buffering in extreme positions.
Consist of knuckle boom marine cranes : Pedestal,slewing ring, column,operation platform,winch,boom,pulley,wire rope,hook etc.
OUCO Cranes Advantages :
- 360° continuous rotation.
- -10 ----+45℃ working temperature.
- certified high quality steel structure.
- pedestal ready for mounting or weld to vessel main structure
- stainless steel grease nipples.
- precise step less speed control.
- simultaneous operations of 2 or more function.
- emergency for hydraulic stop device.
- visual and audible warning alarm.
Technical specification
| SWL | 0.99t10m |
| Max. working radius | 10m |
| Min. working radius | 2m |
| Hoisting speed | 0-15m/min |
| Hoisting height | 15m |
| Slewing speed | ~1.2r/min |
| Slewing angle | 360° |
| Luffing time | ~45s |
| Luffing angle | 75° |
| Working condition | trim ≤ 2 ° heel ≤ 5 ° |
| Design temperature | -10° ~ + 40 ° |
| HPU | 30KW |
| Power resource | AC380V/50HZ/3P |
| Dead weight | 3500kgs |
| Oil tank volume | 160L |
| Pressure | 28Mpa |
| Brand | OUCO |
| Warranty | one year |
knuckle boom marine crane Design Drawing And Detailed Photos
Processing Photos

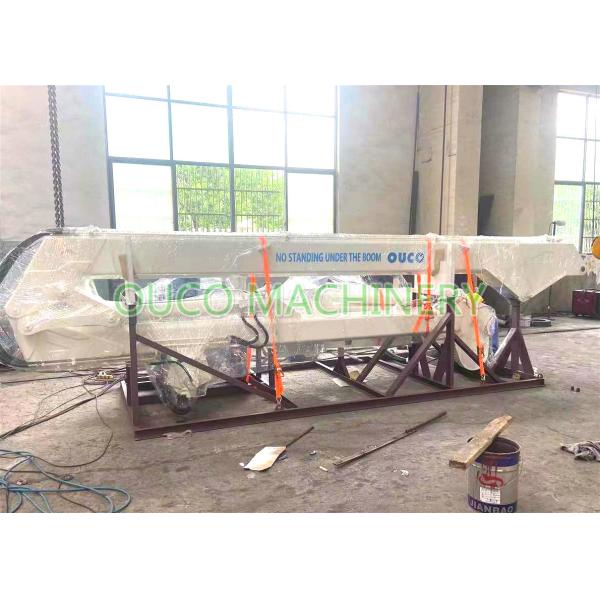

Packing
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and
efficient packaging services will be provided.
