Hydraulic Knuckle Telescopic Boom Crane 1.5t 10m White
Product description
The steering knuckle&Telescopic crane is a special crane used for transportation work in the marine environment. It is mainly used for cargo transportation between ships, sea supply and the transportation and recovery of objects during underwater operations.
Due to the special application conditions and harsh working environment, the folding jib crane must have reliable performance, precise control, high safety and durable structure.
Main Features and advantages
OUCO offers 1.5T10M white folding telescopic crane with lifting points of 1.5t2.1m, 1.5t4.35m, 1.5t 6.5, 1.5t8m.
High rotating torque, low rotary resistance, high diameter force, high torque, low failure rate, long service life and easy maintenance.
Primer is epoxy zinc-rich primer. C5M standard top coat, stronger corrosion resistance to seawater.
External/internal oil cylinder telescopic
The whole crane is sealed to prevent seawater infiltration and the influence of wet environment, and the key internal parts are well protected.
Technical Specification
| SWL | 1.5t10m |
| Max.working radius | 10M |
| Min.working radius | 3M |
| Hook travel | 25M |
| Hoisting speed | 0-12m/min |
| Slewing speed | 1r/min |
| Slewing angle | 360° |
| HPU | 22 KW |
| Luffing angle | 0- 75 ° |
| Design temperature | -20~+45 ° |
| Working condition | heel≤5° trim≤2° |
| Dead Weight | 2700kg |
| Protect class | IP 56 |
General Arrangement

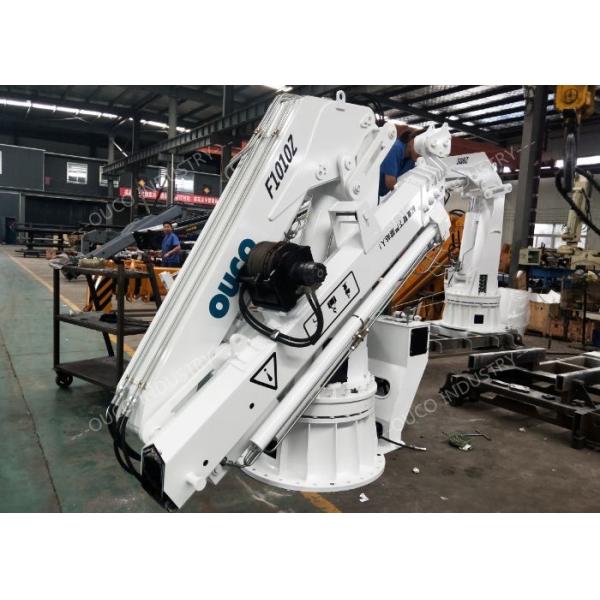

Product Picture
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
| Packing | container |
| Delivery | Standard product : 1month Customized product: 2 months Certified products: 3-4 months |
For more details, please feel free to contact us.
