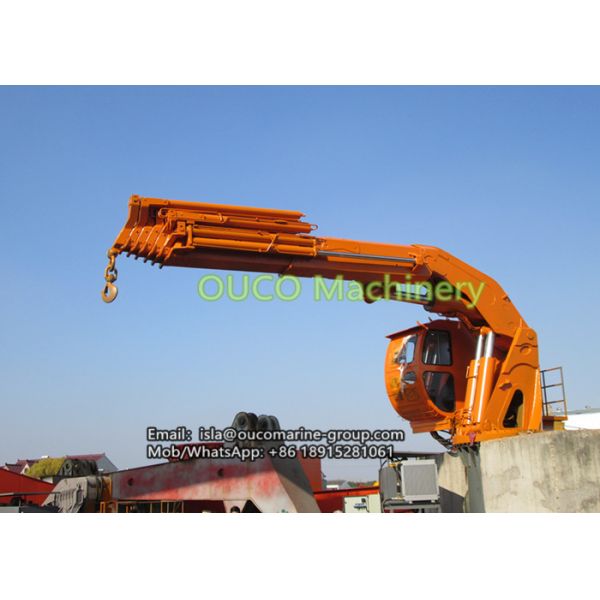

OUCO 6T22M Knuckle Boom Pedestal Marine Offshore Crane
Product Description
The KB series, knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All KB series cranes can be equipped with different accessories and class certified by all leading classification societies.
Adding various features and options make the foldable knuckle boom cranes a multi-functional tool.
Product Feature
1. Variety of control options
2. Simultaneous operation of two or more functions
3. Cr, Ni-Cr or stainless luff cylinder rods
4. Heat Treated 17-4 stainless steel pins
5. AISI 316 stainless fasteners (3/4” dia. & smaller)
Technical Parameters
| SWL | 6T22M |
| Max. Working Radius | 22 m |
| Min. Working Radius | 2.5 m |
| Hoisting Speed | 0-10 m/min |
| Hoisting Height | 30 m |
| Slewing Speed | ~0.8 r/min |
| Slewing Angle | 360° |
| Luffing Time | ~120 s |
| Knuckle Boom Time | ~120 s |
| Extension Time | ~ 150 s |
| Working Condition | Trim ≤ 2° |
| Heel ≤ 5° |
| Speed | 1780 r/min |
| Power Resource | AC440V/60HZ |
| Protect Class | IP56 |
| Insukate Class | F |
| Woeking Type | S1 |
| Power | 55 kw |
| Elec-Motor Power | Y250M-4-H |
Genernal Arrangement
Product Details
FAQ
1. Q:Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Q:Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q:How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q:Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
